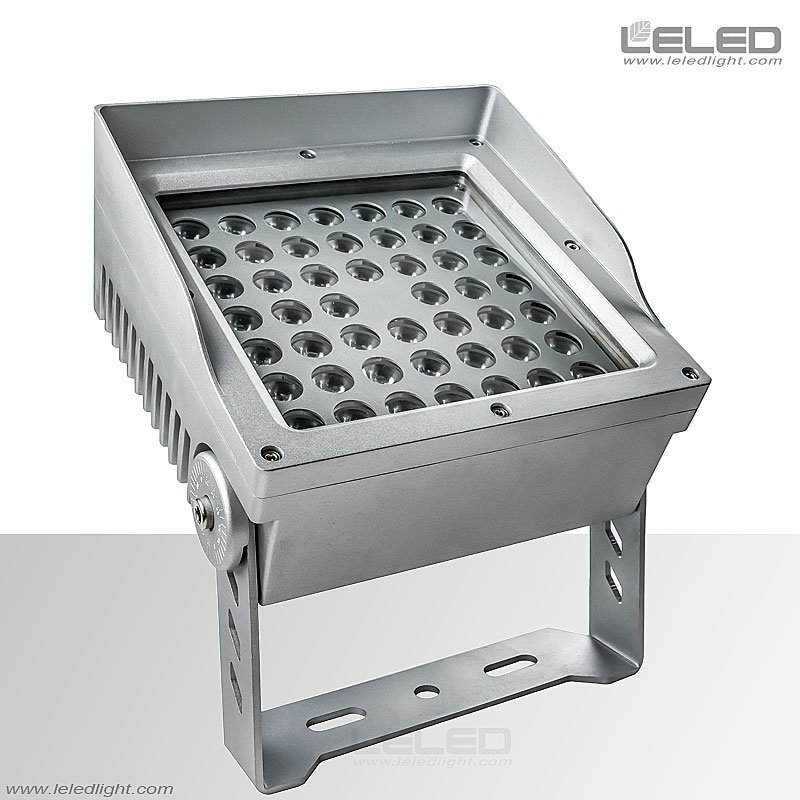

Square high power led flood lights outdoor outdoor & architecture spot lights

Outdoor building wall lighting design for LED outdoor spot lights

Lamp Item No.: LE-FT220F-48

Various mounting options for outdoor LED projector lights, plus different beam spread, optical lens ,and anti-glare accessories, make it an ideal choice for lighting designers.
There are various lighting control systems to choose, such as DMX512 control and so on.
Use different lighting effects depending on the project, such as: static color, RGB or RGB W color change, flowing, chasing, dynamic display etc..

High power square LED projector lights outdoor apply to buildings, bridges, parks, ancient buildings, flood lighting etc..
New heat releasing structure, a unique heat releasing technology. 1-2 times larger cooling area than the traditional RGB high power LED spotlight.
Revolving bracket, it is convenient to adjust the projecting angles.
Use Cree/Osram LED chip, with the professional optical lens, good quality, uniform color, higher brightness.
High strength AD12 dia-casting aluminum housing, tempered glasses.
Akzo Nobel powder coating surface, outdoor grade, anti-UV.

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

LELED Lighting is a excellent manufacturer of Outdoor LED lights products in China.

We only provide high quality LED projector lights outdoor with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All RGB high power LED Spotlight must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.

Control method


LED light source

CREE 1~3W High Power, OSRAM 1W high power

LED lights power (W)

108W, 48W, 60W

Light distribution

Asymmetrical Flood, Flood, Grazing light, Narrow Beam, Narrow spot, Symmetrical spot, Wide beam

Light material

Die-casting aluminum, Tempered glass

Lighting projection effect

Facade Lighting, Floodlights, Floor wash lights, Orientation lighting, Projector, Wallwashers

Luminous flux (LM)


Number of LED

36pcs, 48pcs, 60pcs

Power factor


Protection class (IEC)

I (Safety class I), III (Safety class III)

LED light IP rating


Installation method

Surface mounted

Color rendering index (CRI)



Cable 0.5 m without plug

Beam types

Spot, Wash

Beam angle (∠)

3, 8, 10, 15, 25, 40, 60, 10X40, 10X60, 25X45 degree

Average life

50000 Hours

Driver included



DMX512 Dimmable

Input voltage (V)

AC100V-AC245V(Single color), AC277V (Customize North America), DC24V(RGB)

Square LED Projector Lights Outdoor Size: 210mm X 300mm X 82mm
210mm X 300mm X 111mm
