Aluminium mini small narrow angle directional uplight landscape spotlight with outdoor architecture facade

outdoor lighting building design idea for LED high power small projector spot lights

Lamp Item No.: LE-YTY40X

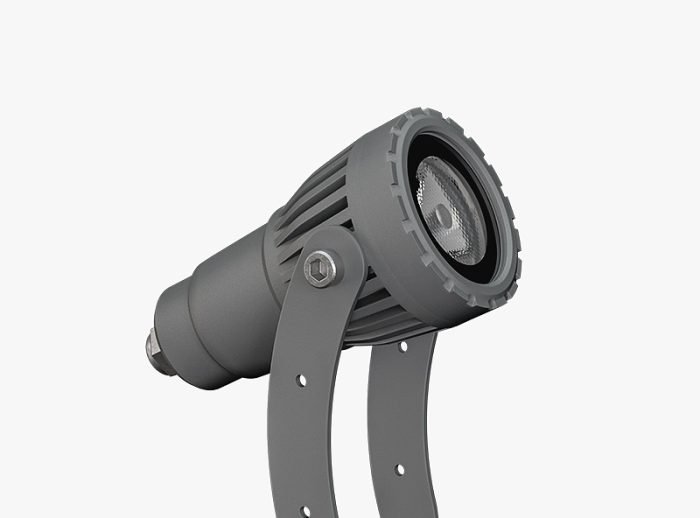

Small LED Spotlights & LED Projector Lights With Outdoor Building
Outside wall spotlight for targeted light in many application areas with the outside spotlight, green areas, buildings and any outside area can be perfectly lit up. The spotlight has a 180° vertical tilt and a 360° rotatable capability. outdoor LED spotlight is therefore an all-round spotlight for various application uses. A ground spike for the spotlight is included.

Apply to buildings, bridges, parks, ancient buildings, flood lighting etc..
Revolving bracket, it is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.
Use Cree/Osram LED chip, with the professional optical lens, good quality, uniform color, higher brightness.
High strength AD12 dia-casting aluminum housing, tempered glasses. Akzo Nobel powder coating surface, outdoor grade, anti-UV.
High standard aging test. Waterproof requirements are all 0.5M deep water test for 8 hours. IP grade all are above IP65.
A variety of color temperature choose (1700K-6500K).

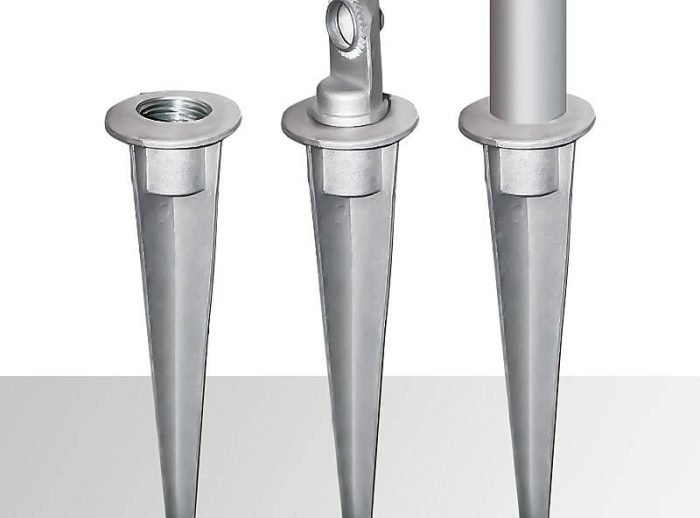

You can choose earth spike.

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

We only provide high quality outdoor LED spotlight with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All outdoor projector lights must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.

Weight0.5 kgDimensions105 × 42 × 42 cm
Lighting projection effect

Floodlights, Projector

Light material

Die-casting aluminum, Tempered glass

LED lights power (W)


Input voltage (V)


LED light IP rating


Beam angle (∠)

3, 8, 10, 15, 25, 40, 60 degree

Average life

50000 Hours

Number of LED


Beam types


Color rendering index (CRI)


Driver included


Installation method

Surface mounted


CE mark, Rohs mark

LED light source

CREE 1~3W High Power

Light source color

Amber, Blue, CW(cold white), Green, Red, W (4000K-4500K), WW(Warm white)

Luminous flux (LM)


Power factor


Working temperature (°C)

-30 °C ~ +45°C

Narrow angle directional uplight size: 42mm X 105mm

lighting building facade design idea for LED high power projector spot lights
