Rgbw super power led linear wall grazer light plus pixel & wall washer with big lens long-distance projection

narrow beam led flood lights,led uplighting lighting,outdoor projector light design idea

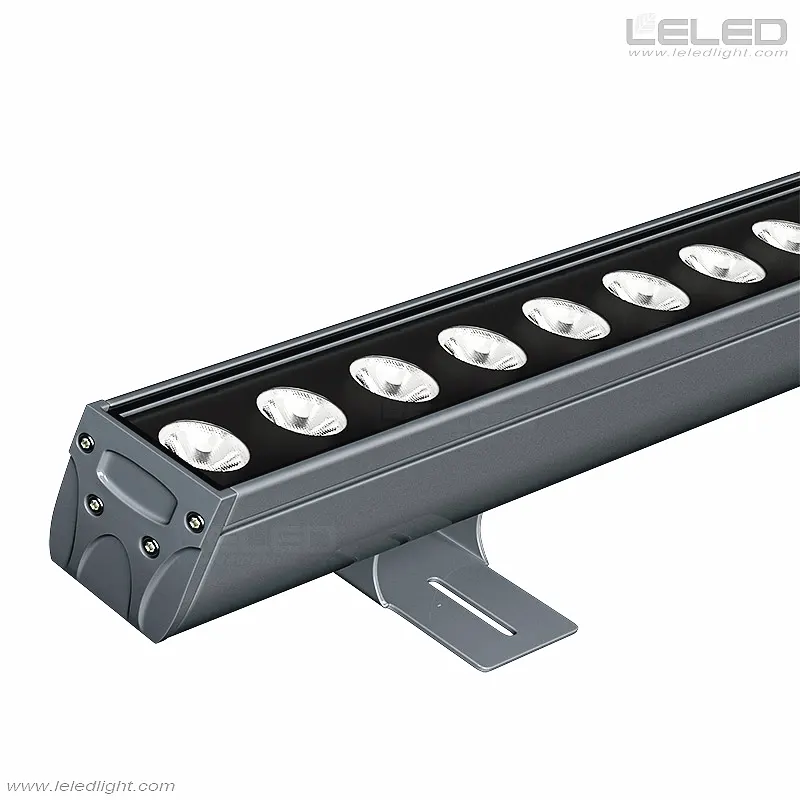

Lamp Item No.:LE-XQC70

Linear LED projector lights with long distance projecting apply to outdoor facade illumination, sculptures and locations which require emphatic lighting energy saving replacements for metal halide and quartz halogen fixtures,containing an integral listed driver.
Material: Aluminum alloy housing, tempered glass, stainless steel screw.
Surface finish: Akzo Nobel powder coating, outdoor grade, anti-UV.
Effects: RGB color-changing, flowing, chasing, 256 grades brightness.
Superior light quality, Cree or Osram LEDs, CRI:>75.
Quality Assurance: All the products must accept 5 kinds of Checks during production, raw material check, Lights beads check, aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.
Warranty: 3 years warranty for quality;

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

Average life

50000 Hours

Beam angle (∠)

3, 8, 10, 15, 25, 40, 60, 10X40, 10X60, 25X45 degree


Cable 0.15m of plug, Cable 0.5 m without plug

Color rendering index (CRI)


Control method

0-10V, PWM, DALI, DMX512


PWM, 0-10V Dimmable, DMX512 Dimmable

Driver included


IK rating


Input voltage (V)

AC110V (Customize North America), AC100V-AC245V(Single color), AC277V (Customize North America), DC24V

Installation method

Surface mounted

LED light IP rating


LED lights power (W)


Light distribution

Flood, Grazing light, Narrow Beam, Wallwash, Wide beam

Light material

Aluminum alloy housing, Tempered glass

Light source color

R, Y, B, G, W, RGB(Multi Color), RGBW(Color Changing)

Lighting projection effect

Floodlights, Projector, Wallwashers

Number of LED

18pcs, 24pcs

Power factor


Working temperature (°C)

-30 °C ~ +45°C

Beam types

Spot, Wash

led linear wall grazer light size: 1000mm X 70mm X 190mm (baffle)
1000mm X 70mm X 150mm (without baffle)

XQ70 outdoor LED wall washer lights & line grazer uplight landscape light size picture
Light projecting Building facade wall design idea for outdoor LED high power wall washer lights
