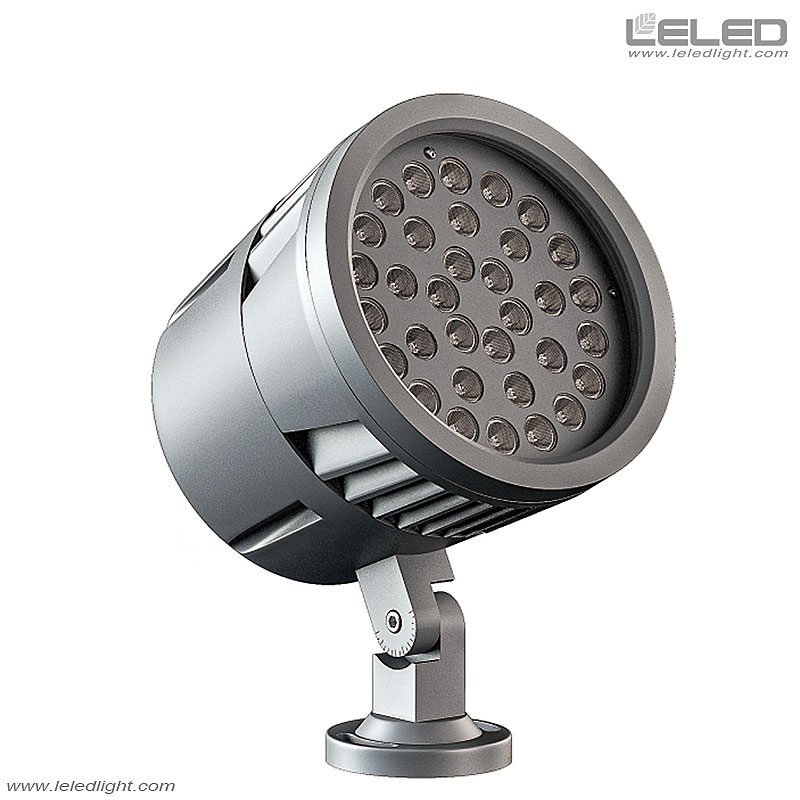

RGB High Power LED Spotlight For Outdoor Architecture Facade Landscape

outdoor lighting building facade design idea for LED high power projector wall washer lights

Lamp Item No.: LE-YT220X

Various mounting options for led wall washer, plus different beam spread, optical lens ,and anti-glare accessories, make it an ideal choice for lighting designers.
There are various lighting control systems to choose, such as DMX512 control and so on.
Use different lighting effects depending on the project, such as: static color, RGB color change, flowing, chasing, dynamic display etc..

High power LED spotlight apply to buildings, bridges, parks, ancient buildings, flood lighting etc..
New heat releasing structure, a unique heat releasing technology. 1-2 times larger cooling area than the traditional RGB high power LED spotlight.
Revolving bracket, it is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.
Use Cree/Osram LED chip, with the professional optical lens, good quality, uniform color, higher brightness.
High strength AD12 dia-casting aluminum housing, tempered glasses. Akzo Nobel powder coating surface, outdoor grade, anti-UV.

Replaces up to 150-400 Watt pulse start metal halide.
Housing is polyester TGIC powder-coated for long durability, and is rust and corrosion proof, IP65-rated, and sealed to be dirt and insect proof.
Single color: Universal 110V to 245V, 50/60Hz driver,  RGB: DC24V.
Superior light quality, Cree or Osram LEDs.
Constructed without any hazardous materials.

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

LELED Lighting is a excellent manufacturer of Outdoor LED lights products in China.
We only provide high quality outdoor LED flood lights with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All RGB high power LED Spotlight must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.

Weight7 kgDimensions420 × 220 × 256 cm
Lighting projection effect

Facade Lighting, Floodlights, Projector, Wallwashers

Light distribution

Asymmetrical Flood, Flood, Narrow Beam, Narrow spot, Symmetrical spot

Average life

50000 Hours

Beam angle (∠)

3, 8, 10, 15, 25, 40, 60 degree


Cable 0.5 m without plug


CE mark, Rohs mark

Color rendering index (CRI)


Control method



0-10V Dimmable

Driver included


Input voltage (V)

AC100V-AC245V(Single color), AC277V (Customize North America), DC24V, DC24V(RGB)

LED light IP rating


LED light source

CREE 1W high power, CREE 3W LED

LED lights power (W)

36W, 54W

Light material

Die-casting aluminum, Tempered glass

Light source color

R, Y, B, G, W, RGB(Multi Color), RGBW(Color Changing)

Luminous flux (LM)


Number of LED

36pcs, 54pcs

Power factor


Working temperature (°C)

-30 °C ~ +45°C

Installation method

Surface mounted

Protection class (IEC)

I (Safety class I), III (Safety class III)

Outdoor High Power LED Spotlight Size: 220mmX265mmX420mm

Lighting projecting high building for super LED high power projector lamp
