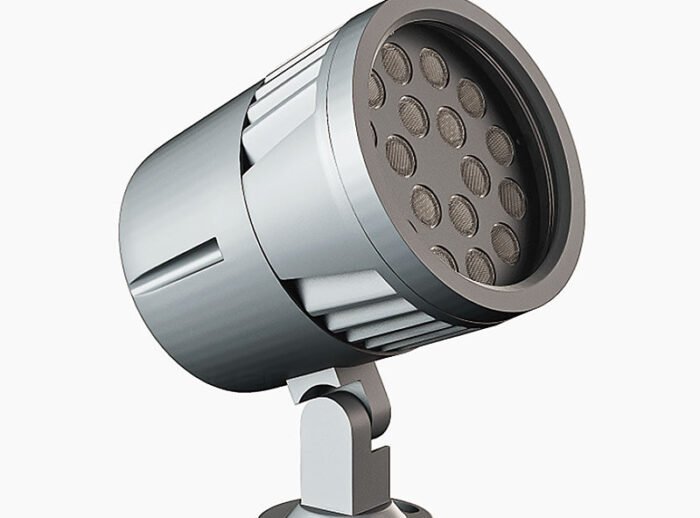

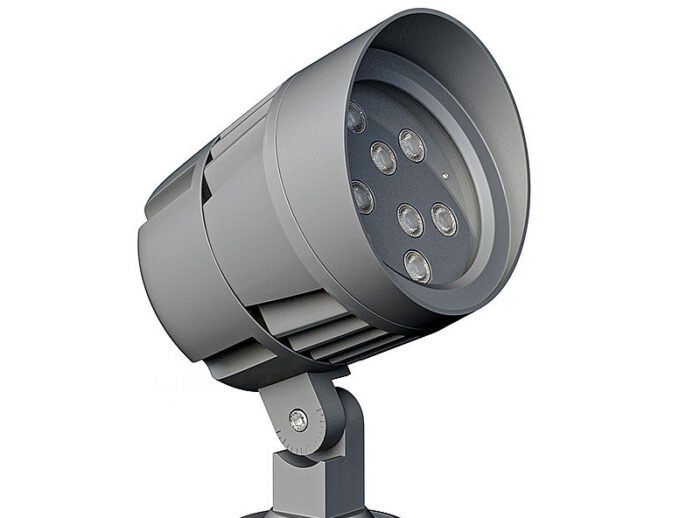

Outdoor RGBW LED Floodlight Fixture For Architectural, DMX512 Control Spotlight

Lamp Item No.: LE-YT165X-7

RGBW LED floodlight fixture apply to buildings, bridges, parks, ancient buildings, flood lighting etc..

New heat releasing structure, a unique heat releasing technology. 1-2 times larger cooling area than the traditional square floodlight.

Revolving bracket, it is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.

Use Cree/Osram LED chip, with the professional optical lens, good quality, uniform color, higher brightness.

High strength AD12 dia-casting aluminum housing, tempered glasses. Akzo Nobel powder coating surface, outdoor grade, anti-UV.

High standard aging test. Waterproof requirements are all 0.5M deep water test for 8 hours. IP grade all are above IP65.

Effects: RGB or RGBW color-changing, flowing, chasing, 256 grades brightness.

A variety of color temperature choose (1700K-6500K).

RGBW 4 in 1 color changing, narrow beam angle projecting.

We only provide high quality outdoor LED light with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All outdoor LED flood lights must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.


Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.


  • DMX512 controller,static and dynamic lighting effects can be designed.
  • Superior light quality,CREE or Osram LEDs.
  • CCT: 2800K-3200K 4000K-5000K 6000-7000K.
  • The heavy duty cast aluminum one-piece housing is polyester powder coated and sealed from dirt, water and insects with a hinged door with a shock-proof tempered glass.
Weight5 kgDimensions165 × 215 × 345 cm
Lighting projection effect

Facade Lighting, Floodlights, Projector, Wallwashers

Light distribution

Flood, Narrow Beam, Narrow spot, Wallwash

Beam angle (∠)

3, 8, 10, 15, 25, 40, 60 degree

Beam types

Spot

Cable

Cable 0.15m of plug, Cable 0.5 m without plug

Average life

50000 Hours

Control method

DMX512

Dimmable

0-10V Dimmable

Driver included

Yes

Input voltage (V)

DC24V(RGB), DC24V(Single color)

Installation method

Surface mounted

LED light IP rating

IP66

LED light source

CREE 3W LED, CREE XML 7-9W/pc

Number of LED

12pcs, 18pcs, 36pcs, 7pcs

LED lights power (W)

24W, 30W, 36W

Light material

Die-casting aluminum, Tempered glass

Light source color

R, Y, B, G, W, RGB(Multi Color), RGBW(Color Changing)

Power factor

0.98

Color rendering index (CRI)

Ra>85

Working temperature (°C)

-30 °C ~ +45°C

led flood landscape light size: 345mmX165mmX215mm

Outdoor building wall lighting design for LED outdoor spot lights
