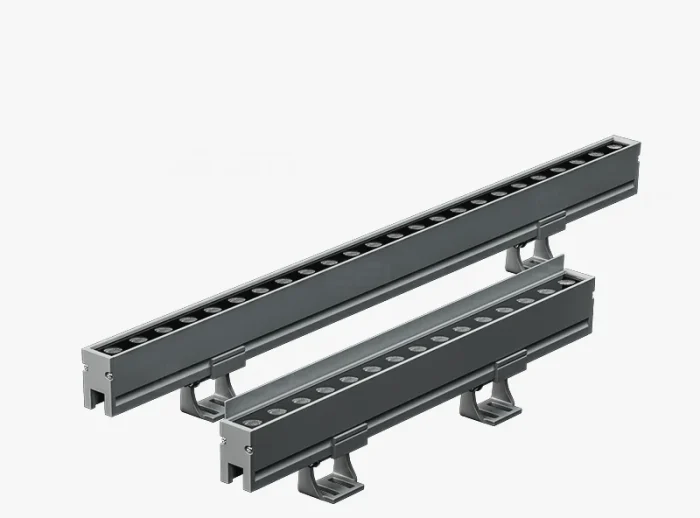

mini small profile line wall grazing lighting, led wall washer for orientation lighting

Lamp Item No.: LE-XQ22A

Various mounting options for line wall grazing lighting, plus different beam spread, optical lens, Small and compact, make it an ideal choice for lighting designers.
There are various lighting control systems to choose, such as DMX512 control, PMMA control and so on.
Use different lighting effects depending on the project, such as: static color, RGB color change, flowing, chasing, dynamic display etc..
Revolving bracket: it is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.
Choose high-quality LED, Good color consistency, high CRI, with the professional optical lens, The wall grazing lighting lamp illumination distance is far, good quality, uniform color.

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

Average life

50000 Hours

Beam angle (∠)

10X40, 10X60, 25X45 degree, 25,40,60

Beam types

Spot, Wash


Cable 0.15m of plug, Cable 0.5 m without plug

Color rendering index (CRI)


Control method



PWM, DMX512 Dimmable

IK rating


Input voltage (V)


Installation method

Surface mounted

LED light IP rating


LED lights power (W)


Light distribution

Grazing light, Wallwash, Wide beam

Light material

Aluminum alloy housing

Light source color

R, Y, B, G, W, RGB(Multi Color), RGBW(Color Changing)

Lighting projection effect

Facade Lighting, Floodlights, Projector, Wallwashers

Number of LED

48pcs, 60pcs

Power factor


Working temperature (°C)

-30 °C ~ +45°C

Line wall grazing lighting default size: 1000mm X 22mm X 74mm (baffle)
1000mm X 22mm X 64mm (without baffle)
