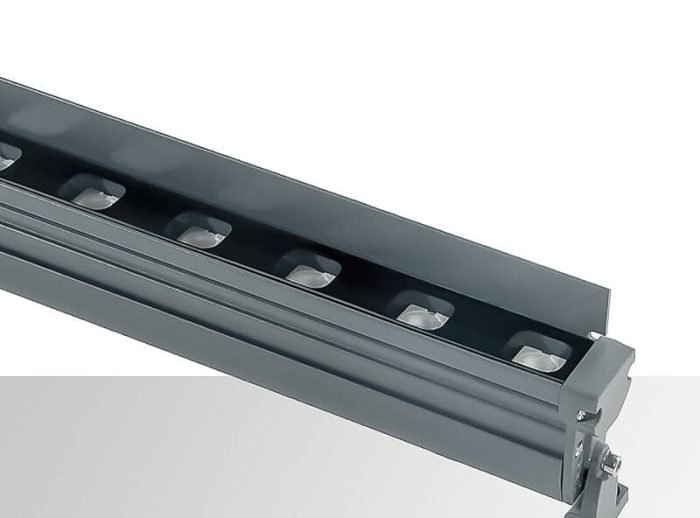

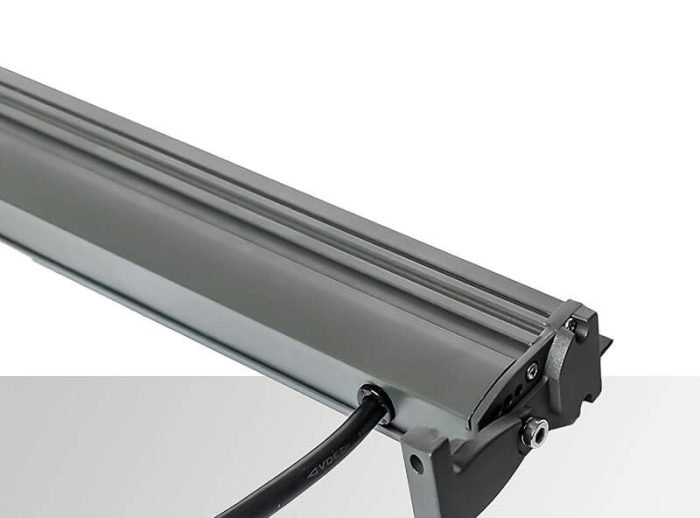

LED Wall Washer Lights Outdoor IP65 CREE 24W For Building Facade

Lamp Item No.: LE-XQ30-18/24/30

Apply to buildings, bridges, parks, ancient buildings, flood lighting etc..
New heat releasing structure, a unique heat releasing technology. 1-2 times larger cooling area than the traditional square floodlight.
Revolving bracket, it is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.
Use Cree/Osram LED chip, with the professional optical lens, good quality, uniform color, higher brightness.
High strength AD12 dia-casting aluminum housing, tempered glasses. Akzo Nobel powder coating surface, outdoor grade, anti-UV.
High standard aging test. Waterproof requirements are all 0.5M deep water test for 8 hours. IP grade all are above IP65.
A variety of color temperature choose (1700K-6500K).
LED wall washer lights apply to outdoor facade illumination, sculptures and locations which require emphatic lighting energy saving replacements for metal halide and quartz halogen fixtures,containing an integral listed driver.
Material: Aluminum alloy housing, tempered glass, stainless steel screw. Surface finish: Akzo Nobel powder coating, outdoor grade, anti-UV.
Effects: RGB color-changing, flowing, chasing, 256 grades brightness.


Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.


LELED Lighting is a excellent manufacturer of Outdoor LED lights products in China.

We only provide high quality outdoor LED light with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All outdoor LED wall washer lights must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.



Weight2.5 kgDimensions1000 × 32 × 80 cm
Lighting projection effect

Floodlights, Projector, Wallwashers

Light distribution

Asymmetrical Flood, Flood, Narrow spot, Symmetrical spot, Wallwash

Light material

Aluminum alloy housing, Tempered glass

LED lights power (W)

18W, 24W, 30W

Number of LED

18pcs, 24pcs, 30pcs

Light source color

Amber, Blue, CW(cold white), Green, Red, RGB(Multi Color), RGBW(Color Changing), W (4000K-4500K), WW(Warm white)

LED light source

CREE 1W high power, OSRAM 1W high power

Installation method

Surface mounted

Input voltage (V)

AC100V-AC245V(Single color), AC277V (Customize North America), DC24V(RGB), DC24V(Single color)

Power factor

0.98

Protection class (IEC)

III (Safety class III)

Average life

50000 Hours

Cable

Cable 0.15m of plug, Cable 0.5 m without plug

Color rendering index (CRI)

Ra>85

Driver included

Yes

Control method

DMX512

Working temperature (°C)

-30 °C ~ +45°C

LED wall washer lights default size: 1000mm X 32mm X 80mm

Light projecting Building facade design idea for outdoor LED high power flood lights
