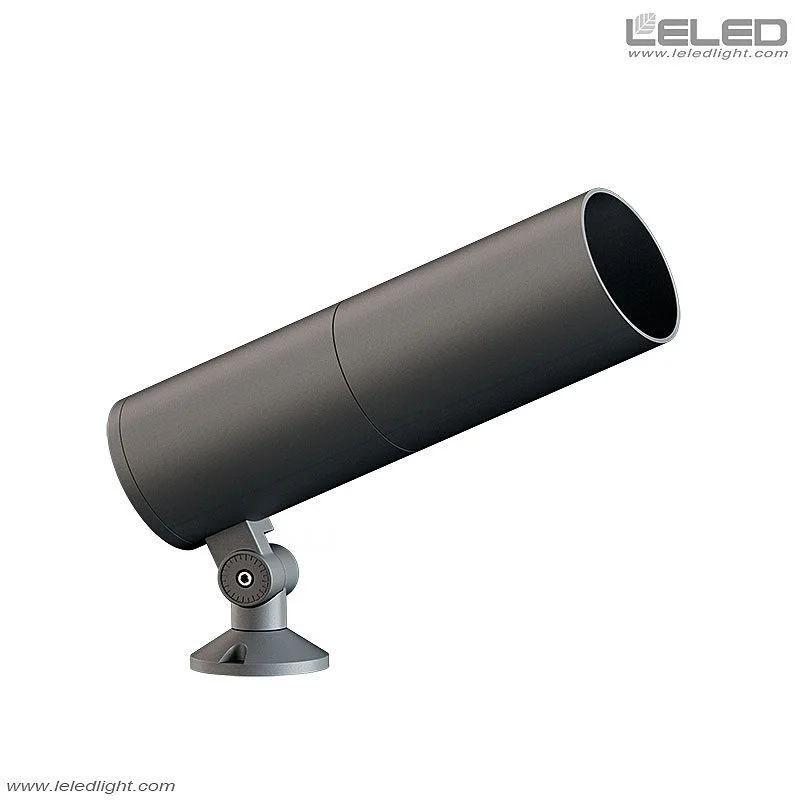

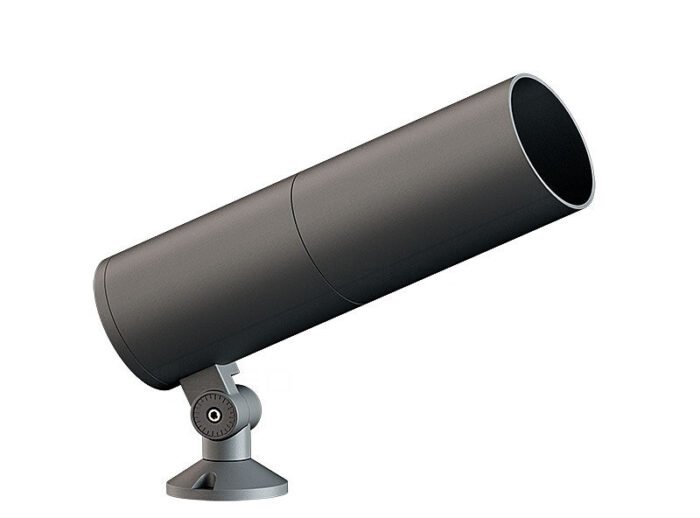

Round LED Flood Light Fixture Osram Chip For Outdoor Building Projector

outdoor lighting building facade design idea for LED high power projector wall washer lights

Lamp Item No.: LE-YTS135X

Apply to buildings, bridges, parks, ancient buildings, flood lighting etc..

New heat releasing structure, a unique heat releasing technology. 1-2 times larger cooling area than the traditional led flood light fixture.

Revolving bracket, it is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.

Use Cree/Osram LED chip, with the professional optical lens, good quality, uniform color, higher brightness.

High strength AD12 dia-casting aluminum housing, tempered glasses. Akzo Nobel powder coating surface, outdoor grade, anti-UV.

High standard aging test. Waterproof requirements are all 0.5M deep water test for 8 hours. IP grade all are above IP65.

A variety of color temperature choose (1700K-6500K).

Effects: RGB color-changing, flowing, chasing, 256 grades brightness.

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

  • Material: Aluminum alloy housing, tempered glass, stainless steel screw.
  • Surface finish: Akzo Nobel powder coating, outdoor grade, anti-UV.
  • Effects: RGB color-changing, flowing, chasing, 256 grades brightness.
  • Superior light quality, Cree or Osram LEDs.
Weight1.5 kgDimensions200 × 135 × 165 cm
Lighting projection effect

Facade Lighting, Floodlights, Projector, Wallwashers

Light distribution

Flood, Narrow Beam, Wallwash, Wide beam

LED lights power (W)

12W, 18W

Light material

Die-casting aluminum, Tempered glass

Input voltage (V)

AC100V-AC245V(Single color), AC277V (Customize North America), DC24V(RGB), DC24V(Single color)

Light source color

Amber, Blue, CW(cold white), Green, Red, RGB(Multi Color), RGBW(Color Changing), W (4000K-4500K), WW(Warm white)

Average life

50000 Hours

Beam angle (∠)

3, 8, 10, 15, 25, 40, 60 degree


Cable 0.15m of plug, Cable 0.5 m without plug


CE mark, Rohs mark

Color rendering index (CRI)


Control method



0-10V Dimmable

Installation method

Surface mounted

LED light IP rating


LED light source

CREE 1~3W High Power

Number of LED

12pcs, 18pcs

Power factor


Protection class (IEC)

I (Safety class I), III (Safety class III)

Working temperature (°C)

-30 °C ~ +45°C

Driver included


Outdoor LED flood light size: 135mm x 135mm x165mm (Add anti-glare cover)
135mm x 135mm x125mm (Not add anti-glare cover)

YT135 outdoor led flood light & uplight grazing lighting size picture for leled lighting
Light projecting Building facade design idea for outdoor LED high power wall washer lights
