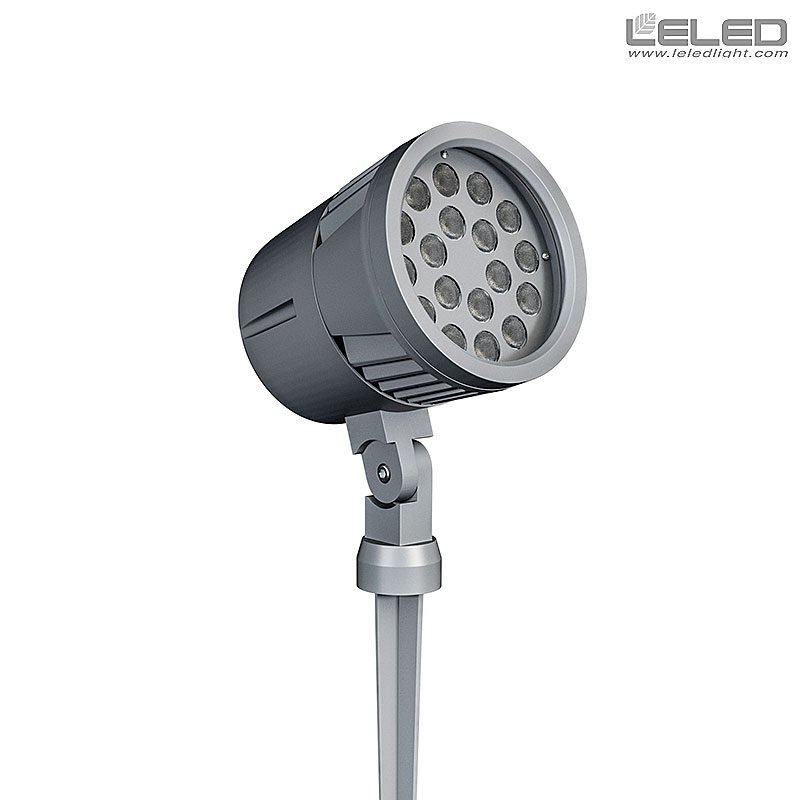

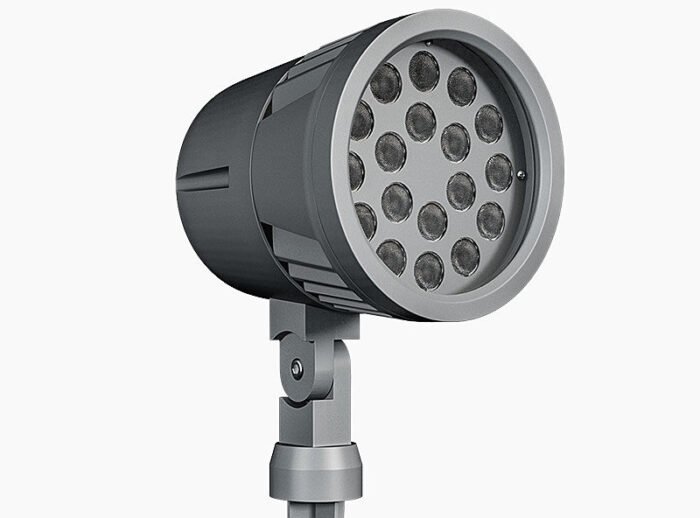

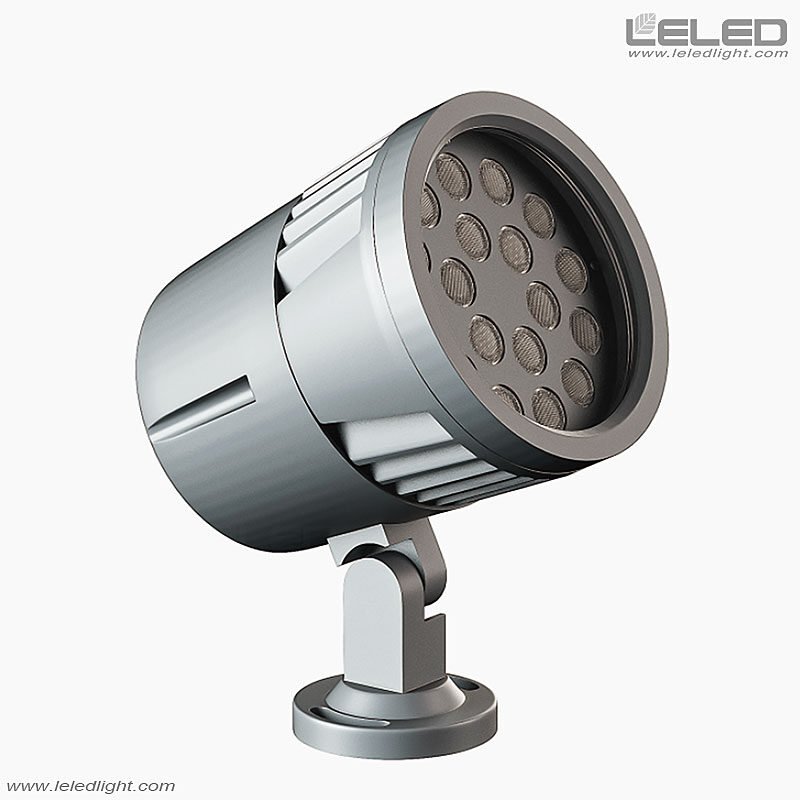

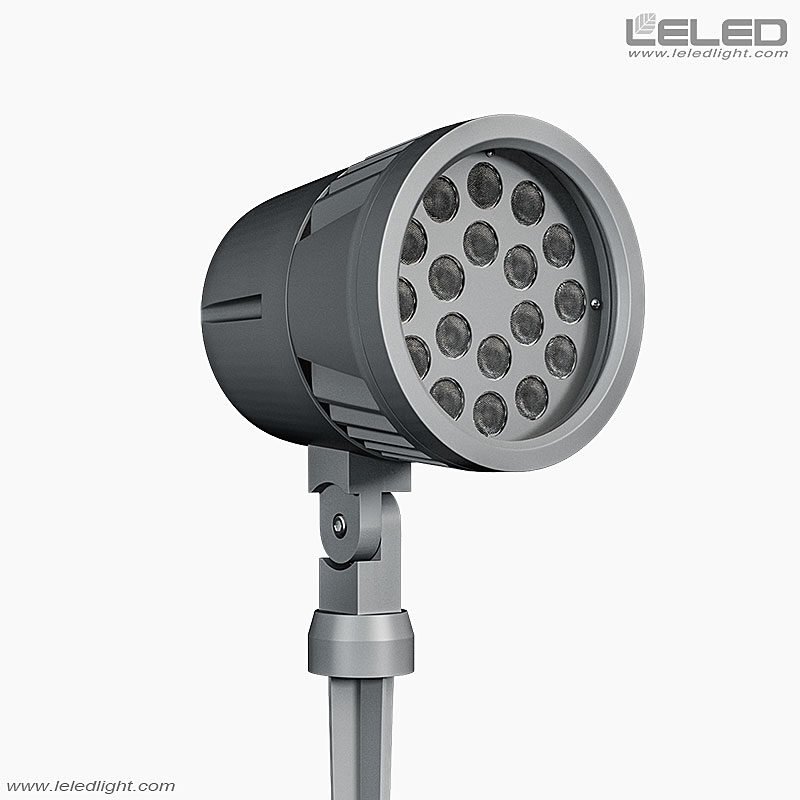

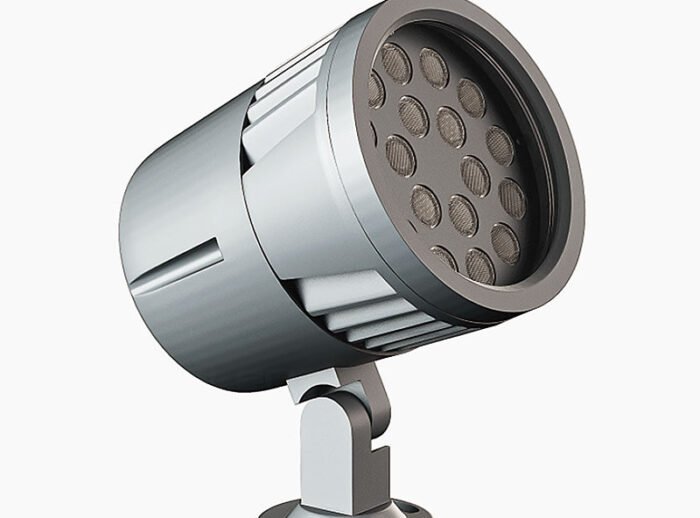

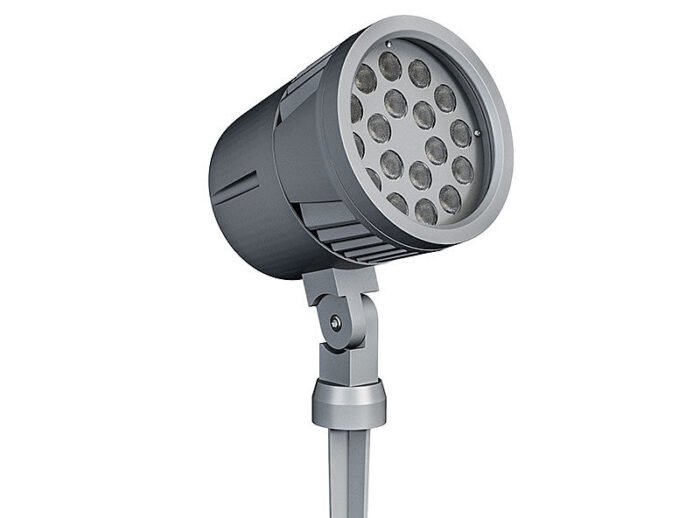

High Power Led Spotlight Outdoor 36W For Building Facade Projector

outdoor led linear light & rigid led linear light bars design idea

Lamp Item No.: LE-YTS175X

High power LED flood lights are efficient, Apply to building facade, Sculptures and locations which require emphatic lighting energy saving replacements for metal halide and quartz halogen fixtures, containing an integral listed driver.
The fixtures can mount at a broad range of angles with ayoke style arm.

Material: Aluminum alloy housing, tempered glass, stainless steel screw.

Surface finish: Akzo Nobel powder coating, outdoor grade, anti-UV.

Effects: RGB color-changing, flowing, chasing, 256 grades brightness.

LELED Lighting is a excellent manufacturer of Outdoor LED lights products in China.

We only provide high quality outdoor LED light with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All outdoor LED flood lights must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.


Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.


Various mounting options for high power LED flood lights, plus different beam spread, optical lens ,and anti-glare accessories, make it an ideal choice for lighting designers.
There are various lighting control systems to choose, such as DMX512 control and so on.
Use different lighting effects depending on the project, such as: static color, RGB color change, flowing, chasing, dynamic display etc..

Weight4.5 kgDimensions235 × 175 × 180 cm
Lighting projection effect

Floodlights, Projector, Wallwashers

Light distribution

Flood, Narrow Beam, Narrow spot, Wallwash, Wide beam

Light material

Die-casting aluminum, Tempered glass

Average life

50000 Hours

Beam angle (∠)

3, 8, 10, 15, 25, 40, 60 degree

Cable

Cable 0.15m of plug, Cable 0.5 m without plug

Beam types

Spot

Certification

CE mark, Rohs mark

Color rendering index (CRI)

Ra>85

Control method

DALI, DMX512

Dimmable

0-10V Dimmable

Driver included

Yes

Input voltage (V)

AC100V-AC245V(Single color), AC277V (Customize North America), DC24V(RGB), DC24V(Single color)

Installation method

Surface mounted

LED light IP rating

IP66

LED light source

CREE 1~3W High Power, OSRAM 1W high power

LED lights power (W)

24W, 36W

Number of LED

24pcs, 36pcs

Protection class (IEC)

I (Safety class I), III (Safety class III)

Working temperature (°C)

-30 °C ~ +45°C

High power LED flood lights size (Anti-glare): 170mm X 180mm
(No Anti-glare): 170mm X 160mm

Building wall lighting design for super LED high power flood lights
