DMX Anti-glare LED Wall Washer China, 18w 24V CREE Chip Uplight Fixture

Light projecting bridge facade design idea for outdoor LED high power wall washer lights

Lamp Item No.: LE-XQ24H-18/24

China led wall washer is cheap, good quality, Apply to outdoor facade illumination. sculptures and locations which require emphatic lighting energy saving replacements for metal halide and quartz halogen fixtures,containing an integral listed driver.
We only provide high quality outdoor LED light with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All outdoor LED wall washer lights must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.
The wallwashers fixtures can mount at a broad range of angles with ayoke style arm.
Material: Aluminum alloy housing, tempered glass, stainless steel screw.
Surface finish: Akzo Nobel powder coating, outdoor grade, anti-UV.
Effects: RGB color-changing, flowing, chasing, 256 grades brightness.

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

  • Application: Outdoor facade illumination.
  • Aluminum alloy housing, tempered glass, stainless steel screw. Surface finish: Akzo Nobel powder coating, outdoor grade, anti-UV.
  • Superior light quality, Cree or Osram LEDs, CRI:>75.
  • DMX512 controller,static and dynamic lighting effects can be designed.
Weight1.2 kgDimensions1000 × 25 × 65 cm
Lighting projection effect

Floodlights, Projector, Wallwashers

Light distribution

Flood, Symmetrical spot, Wallwash

Number of LED

18pcs, 24pcs

LED lights power (W)

18W, 24W

Installation method

Surface mounted

Beam angle (∠)

10X40, 10X60, 25X45 degree

Beam types



Cable 0.15m of plug


CE mark, Rohs mark

Color rendering index (CRI)


Driver included


Input voltage (V)

DC24V(Single color)

Average life

50000 Hours

LED light IP rating


LED light source

CREE 1W high power, OSRAM 1W high power

Light material

Aluminum alloy housing, Tempered glass

Light source color

R, Y, B, G, W

Power factor


Working temperature (°C)

-30 °C ~ +45°C

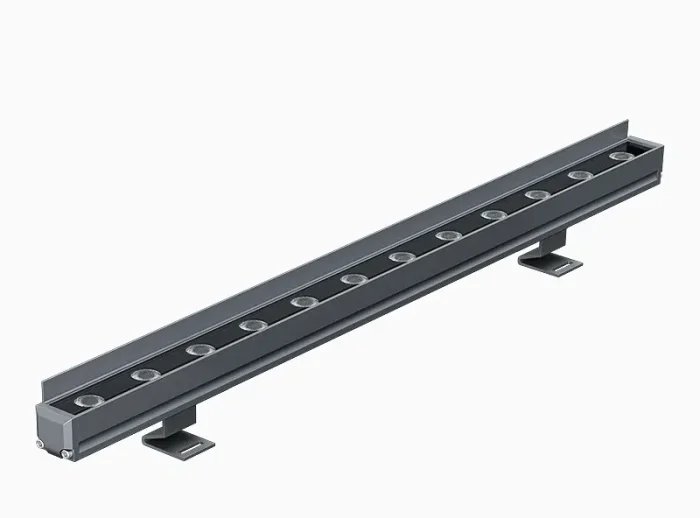

Linear LED Wall Washer Fixtures Default Size: 1000mm(500mm,300mm)X25mmX65mm;
Large quantity can be customized.
